EZ Series

Technical summary

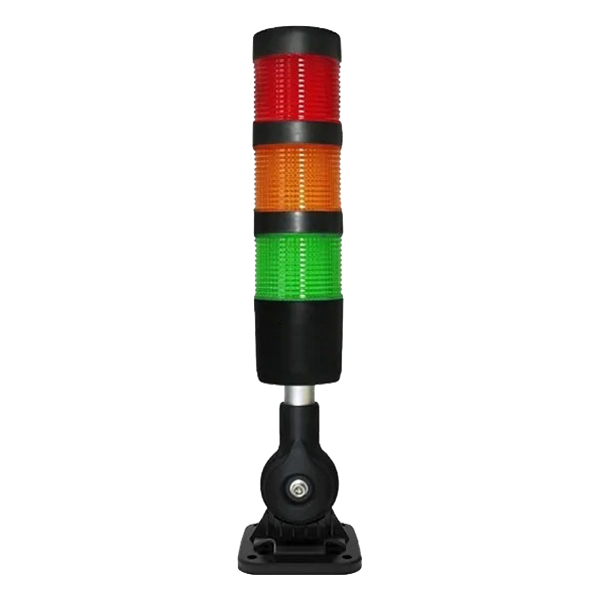

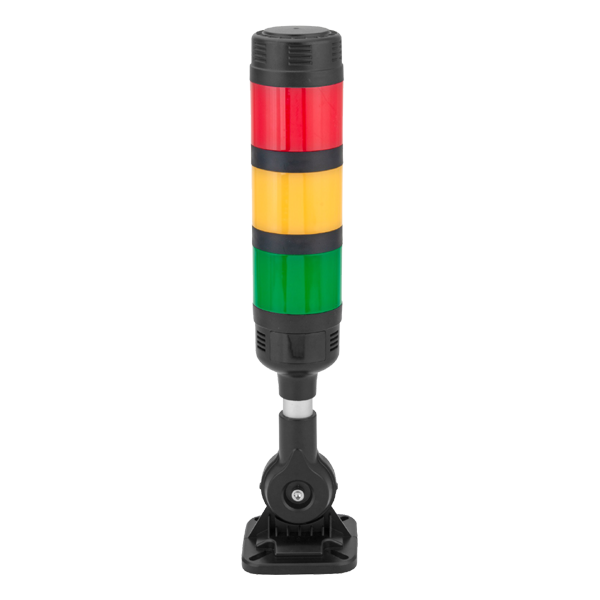

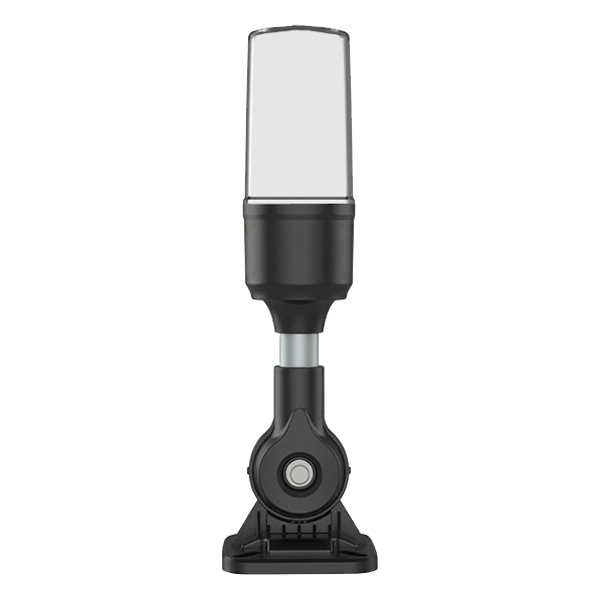

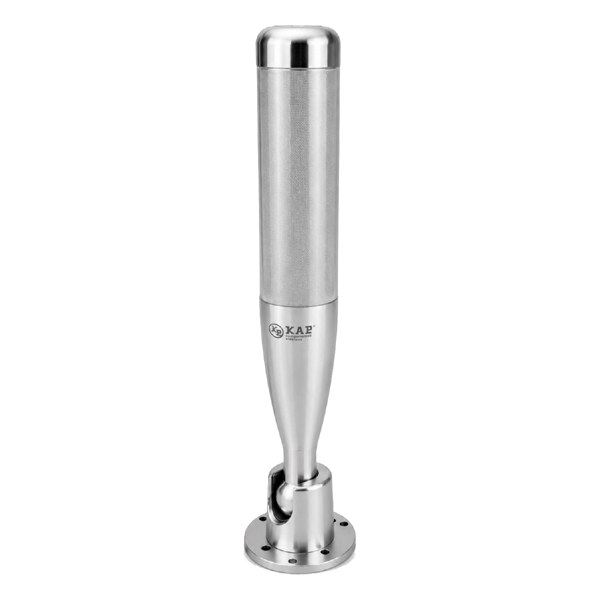

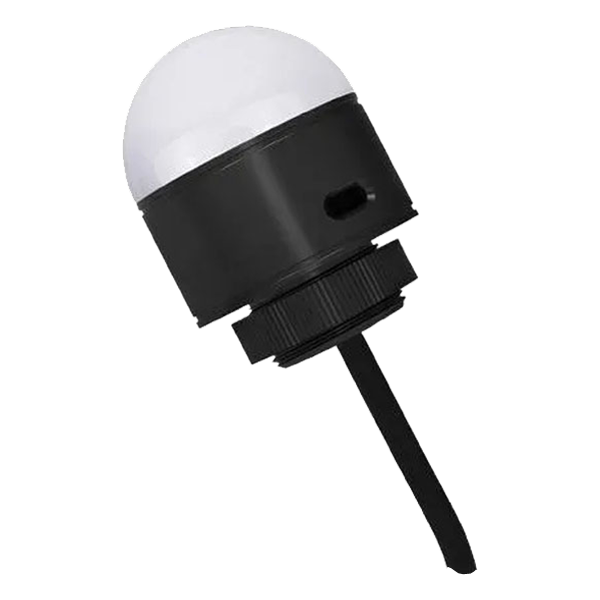

• Visual and audible signaling for industrial machinery, equipment, and processes Ideal solution for status indication, alarms, operating conditions, and process monitoring Available as signal towers and panel-mount modules, providing greater application flexibility High-intensity LEDs for excellent visibility, low power consumption, and long service life Available in versions with 1 or 3 LED modules 3-module version: Green, Yellow, and Red LEDs, with one color per module 1-module version: Multicolor LED with Green, Yellow, or Red color selection via electrical wiring Built-in buzzer with sound output greater than 95 dB, ensuring effective audible signaling Compact 50 mm diameter housing made of high-impact ABS IP53 protection rating for industrial applications Screw-mount base with 0° to 180° adjustable articulated pole, allowing optimal signal positioning to suit installation requirements 24 VDC power supply Models with PNP and/or NPN control inputs for easy integration with PLCs and industrial automation systems Simple and quick installation
